Advanced semiconductor packaging is becoming a major chemical consumption point, changing the economics of the chip supply chain. A 2.5D package combining silicon interposers and multiple chiplets can require through-silicon-via etching, electrochemical copper filling, CMP planarization and redistribution-layer lithography.
Those processes resemble the highly controlled chemical steps used during front-end wafer fabrication.
The difference is that packaging now performs a much larger role in determining computing performance. AI accelerators increasingly depend on high-bandwidth connections between processors and memory, pushing manufacturers toward sophisticated package architectures that consume more specialty materials at every stage.
For chemical suppliers, this creates a new opportunity. The semiconductor chemicals market is no longer only a wafer-fabrication story. Advanced packaging is becoming a strategic demand center in its own right.
Traditional semiconductor packaging primarily protected a completed chip and provided connections to the outside world.
Advanced packaging does much more.
It can combine several chiplets, high-bandwidth memory components and silicon interposers into a single computing package. This architecture allows manufacturers to integrate components that might be difficult or uneconomical to manufacture together on one monolithic die.
That integration creates additional manufacturing steps.
Each step requires materials with controlled purity, predictable processing behavior and tight specifications.
A 2.5D package typically places multiple semiconductor dies alongside one another on an interposer.
The interposer provides dense electrical connections between the components.
Creating those connections requires sophisticated processing, including through-silicon vias, copper interconnects and redistribution layers.
The result is a packaging process that increasingly resembles a miniature semiconductor fabrication sequence.
For specialty chemical suppliers, this distinction matters because every additional process step can create another consumable chemical category.
Through-silicon vias, or TSVs, allow electrical connections to pass vertically through silicon.
Manufacturers first create deep openings in the silicon before filling them with conductive material.
The geometry must remain tightly controlled because the via dimensions influence subsequent metallization and electrical performance.
This makes etch chemistry a critical part of advanced packaging.
Suppliers need to provide materials that deliver consistent etch rates and profiles while minimizing contamination and process variation.
After TSVs are etched, manufacturers need to create conductive connections.
Electrochemical copper filling provides one of the key steps.
The process deposits copper inside microscopic structures while controlling void formation, fill uniformity and surface quality.
That requires carefully formulated plating chemistry.
For chemical suppliers, this creates opportunities beyond conventional copper supply. Plating additives, suppressors, accelerators and related process chemicals can all influence production performance.
A small formulation difference can affect whether a manufacturer achieves reliable filling across thousands of microscopic structures.
Copper deposition may appear straightforward at a bulk level.
At advanced packaging dimensions, however, the process becomes highly sensitive to chemical conditions.
Manufacturers need stable deposition behavior across large numbers of vias and interconnect structures.
The chemistry must remain consistent as baths age and production volumes increase.
This creates a recurring consumables market rather than a one-time materials opportunity.
Suppliers can therefore become integrated into the day-to-day production economics of advanced packaging facilities.
Copper filling does not end the process.
Manufacturers need to remove excess copper and planarize the surface before subsequent processing.
Chemical mechanical planarization, or CMP, combines chemical reactions with mechanical abrasion.
The objective is a smooth and controlled surface suitable for additional lithography and interconnection steps.
CMP creates demand for specialized slurries, abrasives, oxidizing agents and other process chemicals.
As package structures become denser, maintaining surface uniformity becomes increasingly important.
CMP slurries require more than abrasive particles.
Formulation affects removal rate, selectivity, defect generation and surface quality.
A supplier may therefore need to optimize chemistry for a particular copper layer, dielectric material or process condition.
This creates a technically demanding market with substantial qualification barriers.
For chemical companies, the opportunity is attractive because process-specific formulations can command greater value than conventional bulk chemicals.
Advanced packages need to route signals between chiplets, interposers and external connections.
Redistribution layers, or RDLs, provide those pathways.
Creating them requires lithography and associated chemical processing.
That introduces photoresists, developers, cleaners and other specialty materials into the packaging workflow.
The more complex the package becomes, the greater the number of routing layers that may be required.
Photoresists are traditionally associated with wafer fabrication.
Advanced packaging increasingly creates additional demand.
RDL lithography requires materials capable of forming precise patterns over package structures.
The requirements differ from some front-end applications, but the underlying principle remains the same: the chemistry must produce predictable features with minimal defects.
This creates an opportunity for photoresist and formulation suppliers to expand beyond traditional wafer-fab customers.
Chemical processing generates residues and contaminants that must be removed before subsequent steps.
Cleaning occurs after etching, deposition, lithography and other manufacturing operations.
Advanced packaging therefore consumes cleaning materials repeatedly throughout production.
The required purity can be extremely high.
For suppliers, this means semiconductor-grade cleaning chemicals can become a significant recurring demand category as packaging volumes increase.
The most important market signal is the growing amount of chemical processing associated with each advanced package.
A 2.5D package containing several chiplets and a silicon interposer can require numerous chemical-intensive manufacturing operations.
As package complexity rises, chemical consumption per package can approach levels associated with front-end wafer fabrication.
That changes how specialty chemical companies should assess the semiconductor opportunity.
Packaging is no longer simply a downstream finishing operation.
It is becoming a sophisticated manufacturing platform with its own chemical ecosystem.
Artificial intelligence provides much of the demand momentum.
AI processors require enormous data movement between computing units and memory.
Traditional package architectures can struggle to provide the required bandwidth and power efficiency.
Chiplets, silicon interposers and advanced memory integration offer ways to address those limitations.
As AI accelerator production expands, manufacturers need more advanced packages.
Each additional package creates demand for the chemical processes required to build it.
Chiplets allow manufacturers to divide a complex processor into multiple dies.
Different chiplets can use different process technologies or manufacturing locations before coming together in a single package.
This can improve design flexibility.
But integration creates new packaging requirements.
The package must provide dense, reliable electrical connections between components, increasing demand for interposer processing, RDL formation, bumping and related chemical steps.
AI accelerators frequently work with high-bandwidth memory.
Connecting processors with multiple memory stacks requires extremely dense interconnect architectures.
Advanced packaging enables those connections.
As memory integration increases, packaging manufacturers need increasingly precise metallization and surface-processing capabilities.
That can increase consumption of plating chemistry, CMP materials and lithography chemicals.
The packaging boom expands the addressable customer base for semiconductor chemicals.
Suppliers that traditionally sold to front-end fabs can now target:
Advanced packaging houses.
Integrated device manufacturers.
Foundries with packaging operations.
Outsourced semiconductor assembly and test providers.
Substrate manufacturers.
Interposer producers.
Equipment and process-development partners.
This diversification can reduce dependence on traditional wafer-fabrication customers.
Entering advanced packaging does not mean a chemical supplier can simply sell an existing semiconductor-grade product.
Packaging processes have their own specifications.
Copper plating chemistry, CMP slurries, photoresists and cleaning formulations must perform reliably under the customer's exact process conditions.
Manufacturers also care about defects, contamination and process stability.
That creates significant barriers to switching suppliers once a material becomes qualified.
A chemical shortage at a packaging facility can interrupt high-value semiconductor production.
This is particularly important for AI hardware because package complexity and component value can be substantial.
A packaging manufacturer may therefore prefer a slightly higher-cost supplier that offers reliable capacity and rapid technical support.
For traders, supply continuity can become a stronger selling point than the lowest nominal price.
The growth of advanced packaging is also changing semiconductor investment geography.
Major semiconductor manufacturing regions are developing or expanding packaging capabilities alongside wafer fabrication.
This creates opportunities for chemical suppliers to establish local distribution, purification and production capabilities.
Local supply can reduce transportation risks and improve response times.
For specialty chemical companies, following packaging investment may therefore be as important as tracking new wafer fabs.
Advanced packaging chemicals depend on their own upstream inputs.
A plating formulation may require multiple specialty additives.
CMP products depend on abrasives and chemical components.
Photoresists require sophisticated polymer and formulation chemistry.
That means packaging growth can create secondary demand throughout the specialty chemical supply chain.
Chemical traders that monitor upstream dependencies can identify potential shortages before they appear at the packaging plant.
Semiconductor packaging does not accept ordinary industrial-grade chemicals for critical processes.
Contamination can produce defects or affect electrical performance.
Suppliers therefore need strong purification and analytical capabilities.
They also need packaging and transportation systems that preserve material quality until it reaches the manufacturing process.
This creates an important competitive barrier.
Companies that invest in semiconductor-grade quality infrastructure can build relationships that are difficult for commodity suppliers to displace.
Many advanced packaging chemicals are consumed continuously during production.
Plating baths require replenishment.
CMP slurry is consumed during planarization.
Cleaning chemistry is used repeatedly.
Lithography materials are consumed with each production cycle.
This gives chemical suppliers recurring demand linked directly to package output.
For specialty producers, that can provide attractive revenue visibility when long-term supply contracts are in place.
Traditional semiconductor procurement teams may maintain detailed maps of wafer-fab chemical suppliers.
Advanced packaging requires a broader view.
Buyers should identify suppliers for:
TSV etching chemicals.
Copper electroplating formulations.
CMP slurries.
RDL photoresists.
Developers.
Surface cleaners.
Wet-process chemicals.
Specialty solvents.
They should also identify the geographic concentration of each supply category.
Featured Product
Found this useful?
Continue Reading
Personal care chemicals are projected to grow at roughly 8.03% CAGR through 2033, offering specialty chemical suppliers a steady growth market. Here is why resilience may matter more than headlines.

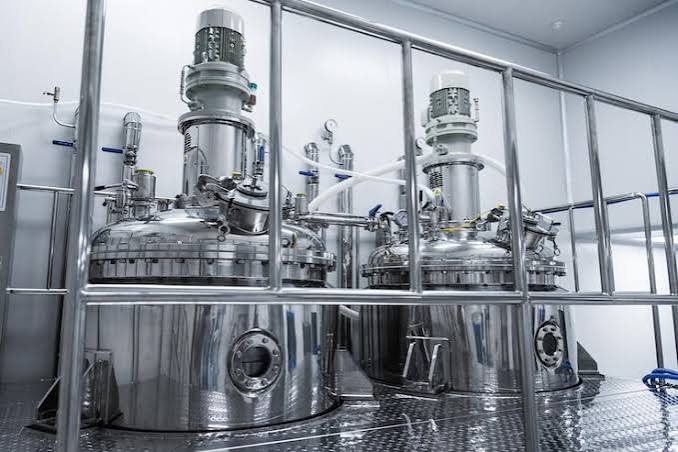

Phenol, styrene and titanium dioxide saw price increases in early 2026 as producers pursued margin recovery amid higher feedstock and structural costs. The moves reveal a broader shift toward value-focused specialty chemical portfolios.
